LiDAR measuring for kitchen, closet and furniture makers

Scan the room. Leave with the drawing.

MeasurePlan turns an iPhone LiDAR scan into a dimensioned plan, wall elevations, outlet and pipe positions, photos and 3D — and lets you confirm every wall that matters with a laser.

See how it works Who it's for
  • 1 scanplan, elevations, details, 3D
  • ~ / ✓scan values and laser-confirmed values, side by side
  • 6 formatsPDF · DXF · SketchUp · FBX · GLB · OBJ

How it works

From an empty room to a buildable plan

  1. 01

    Walk the room

    Walk slowly along the walls. LiDAR traces the floor, corners, doors and windows, and sharp photos are kept along the way.

  2. 02

    Get the plan

    Walls, openings and the ceiling height become a clean plan with dimensions in millimetres or inches.

  3. 03

    Mark the details

    Aim at outlets, switches, pipes and valves. Each one lands on its wall with its height and offset from the corner.

  4. 04

    Confirm with the laser

    Connect a Leica DISTO and measure the walls you will build against. Confirmed values are marked ✓ in every drawing.

  5. 05

    Send the files

    PDF for the client, DXF for CAD, SketchUp and 3D for the designer — straight from the job site.

Inside the app

See it, measure it, step back into it

AR · 1:1

Walk back into the room — from your phone

Open any saved scan in AR and the room appears around you at full size, with its real photo texture and lit by the light where you stand. Check a cabinet against a window from your office, a week later.

  • Return to the job site without driving there
  • Send the 3D file — your client, designer or installer far away sees the room with their own eyes
  • Measure what you forgot, straight on the scan

  • HD photo texture

    Sharp, colour-balanced texture built from the scan photos, with no seams between shots. You can read an outlet or a valve label on the model.

  • Full-size AR

    The scanned room at 1:1 around you, lit by the real room light. Walk through it as if you were back on site.

  • Measure on the scan

    Tap two points, then drag either end with a magnifier. Lock to vertical or level. Every new distance is saved with the project.

  • Scan viewpoints

    Stand exactly where each photo was taken and look around the room from there, with the 3D model behind it.

  • AR tape measure

    Measure live through the camera: chains of lines, vertical and level locks, undo.

  • Level and angle

    Bubble level and edge gauge in degrees, mm/m, in/ft or percent, with hold and set-zero.

  • Floor levels and ceiling

    Finds steps and sunken areas in the floor, like a basement, and draws them on the plan. Ceiling heights are confirmed by laser and marked ✓.

  • Shape first, then laser

    Sketch the room — rectangle, L, U or T — then go around with the Leica DISTO wall by wall. Turns either way.

  • Furniture measure

    Scan a cabinet or a sofa and get its overall size and front, side and top drawings, with DXF export.

Uses

Made for people who make things fit

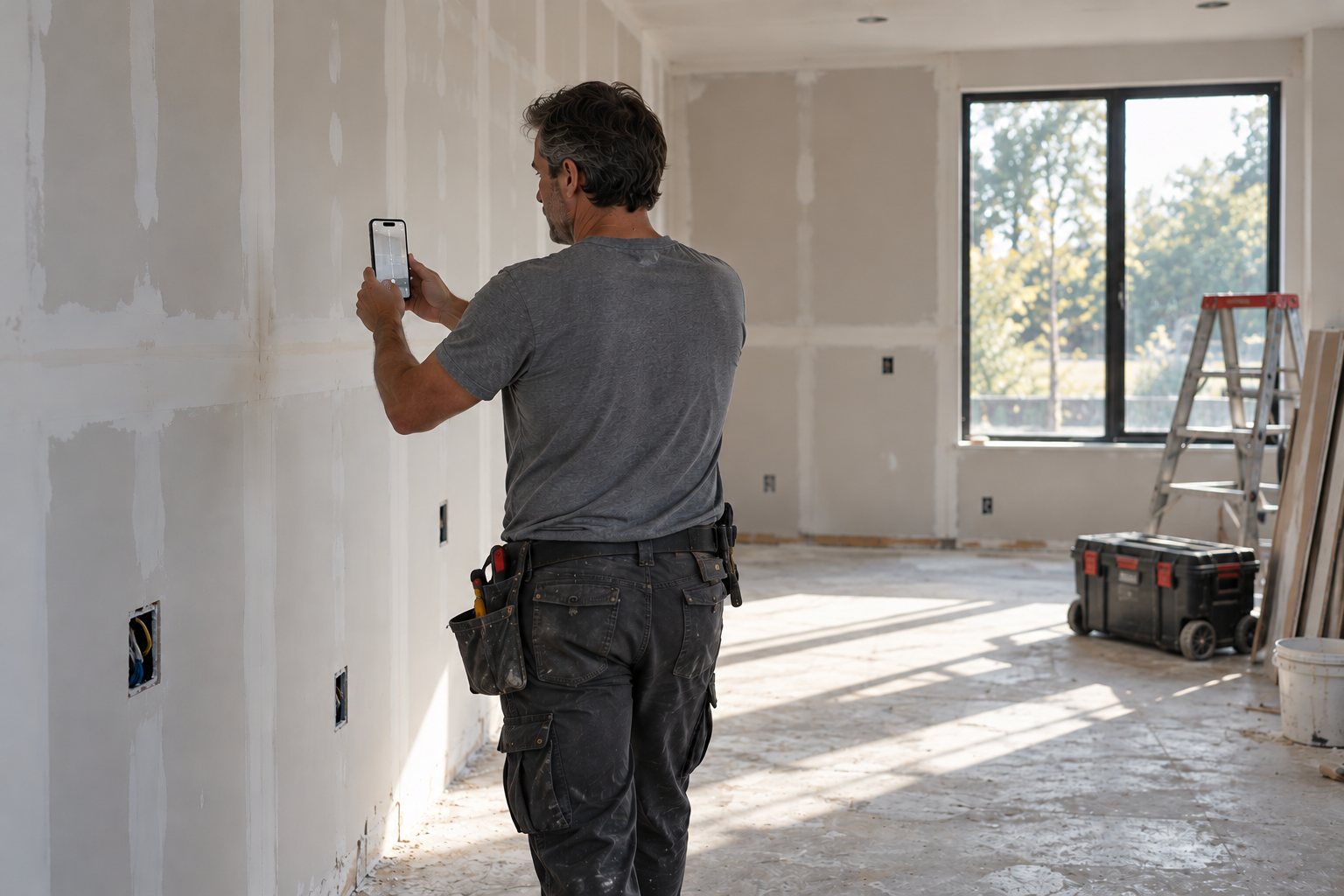

A cabinet maker scans an unfinished room with an iPhone
01 · Walk the walls — LiDAR draws the room

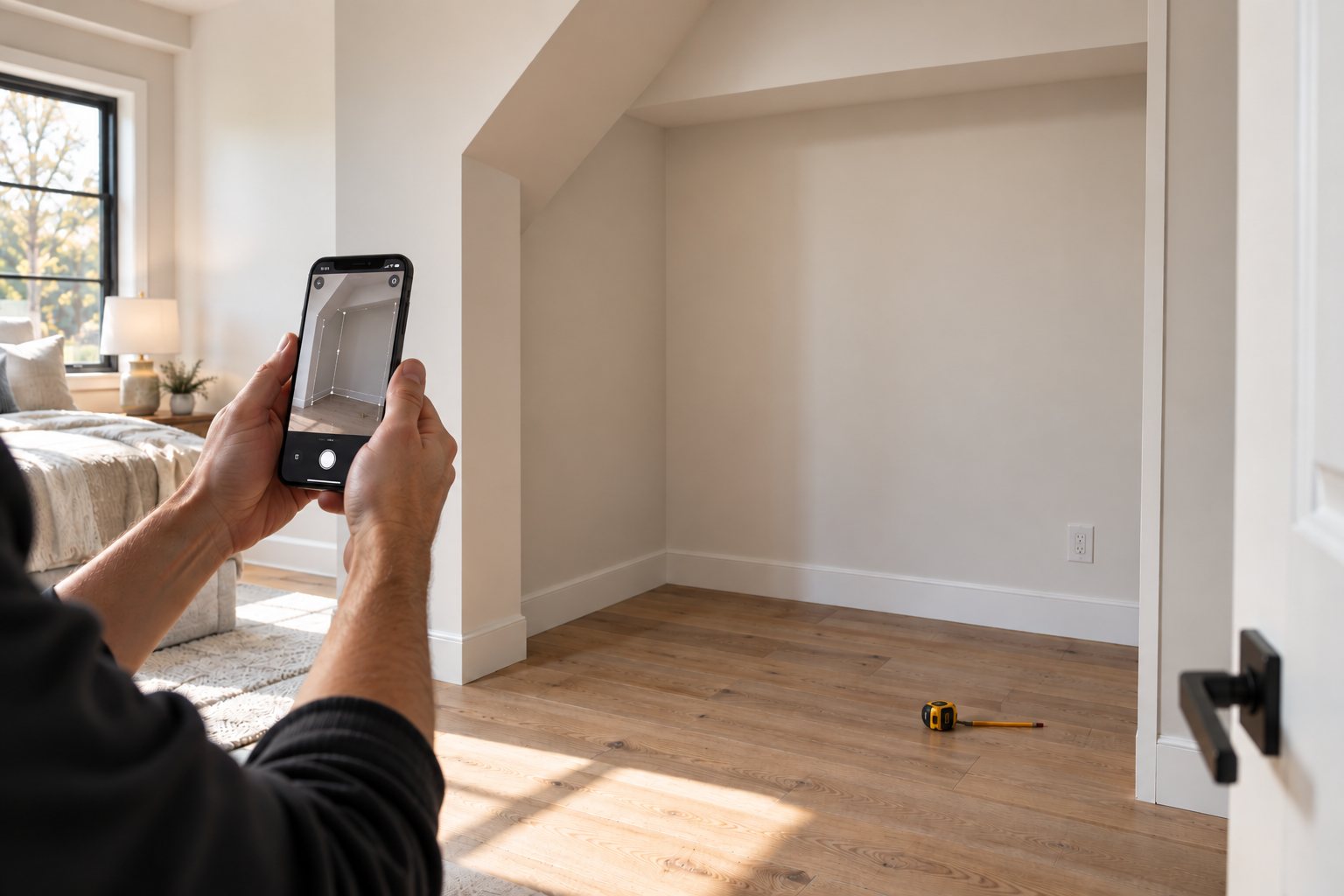

Scanning an alcove for a built-in wardrobe
02 · Niches and slopes, measured once

  • Kitchens

    Wall lengths, ceiling height, window sills, outlets and water lines — what a cabinet layout needs.

  • Closets and wardrobes

    Niches, slopes and door openings measured once, ready for a module layout.

  • Furniture and objects

    Scan a sofa, a table or a vanity in Object mode and open it in Blender or 3ds Max.

  • Countertops Coming

    Laser templating of counters and backsplashes.

  • Renovation

    A dimensioned record of the room before work starts, with photos and 360° points.

  • Designers and 3D

    Plans and models that open in SketchUp, Blender, 3ds Max and any CAD.

Files

One scan. Every file the team asks for.

  • PDF

    Drawing pack

    Plan, wall elevations and details, ready to send to the client.

  • DXF

    CAD

    AutoCAD, BricsCAD and CNC software, on layers, in real units.

  • SKP

    SketchUp

    Walls, openings and details as a model to design in.

  • FBX

    FBX · GLB · OBJ · STL

    Room and object meshes for Blender, 3ds Max and viewers.

  • 360

    360° and photos

    Look around the room later with the dimensions on top.

  • ZIP

    Project file

    Open it again later to check or continue the job.

Leica DISTO

Laser where it matters

Scans are fast, lasers are exact. MeasurePlan connects to a Leica DISTO over Bluetooth, so you can confirm the walls a cabinet or a countertop will touch. The scan value and the laser value sit side by side, and big differences are flagged.

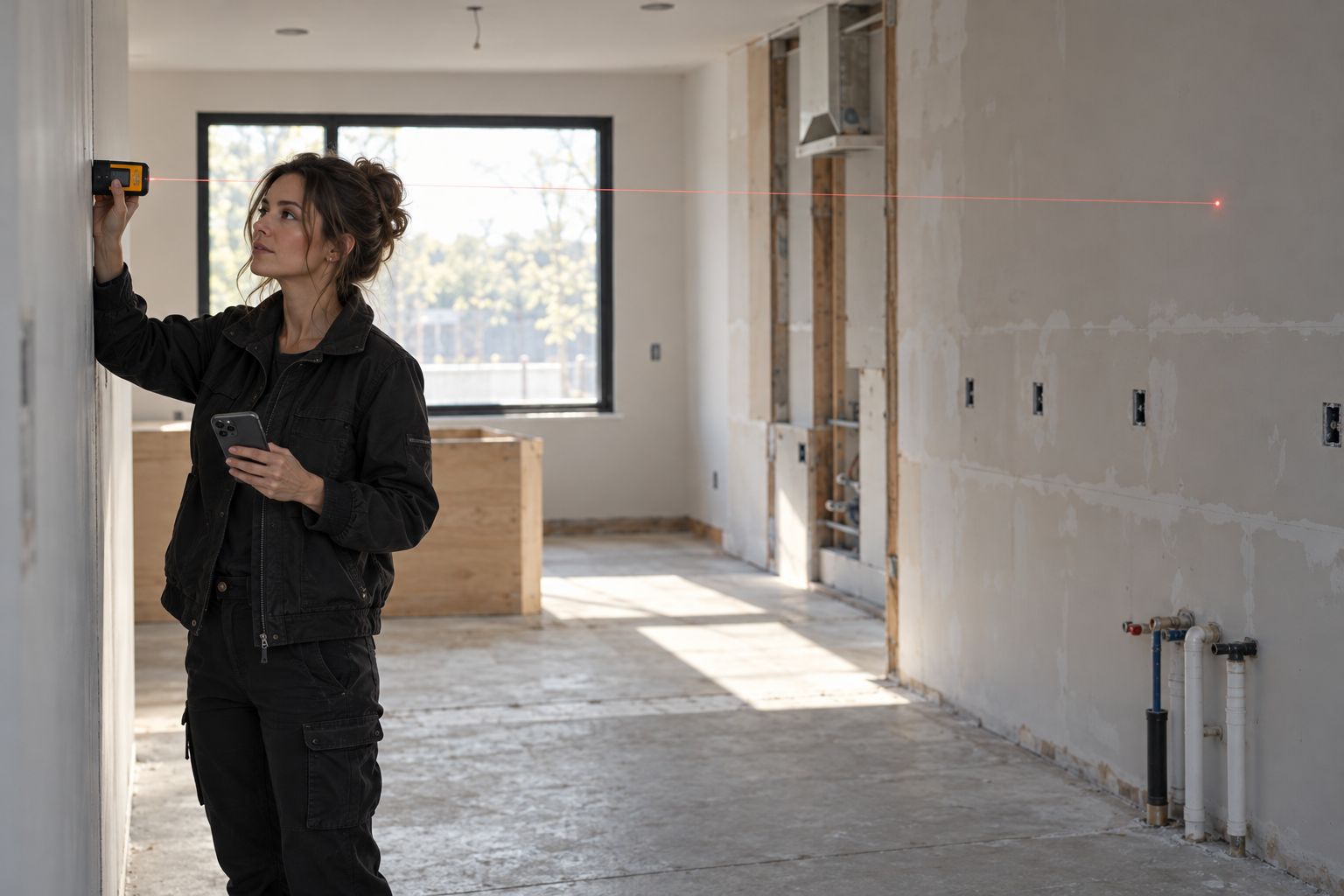

A kitchen designer confirms a wall length with a laser distance meter during a renovation

Honest about accuracy

A phone scan is usually within 1–3 cm per wall. That is great for layouts and quotes, not for cutting stone. Every value is marked: ~ from the scan, ✓ confirmed by you. Check what matters on site before you manufacture.

From the blog

All articles →

Coming to the App Store

Needs an iPhone Pro or iPad Pro with LiDAR. For early access or questions, write to:
